About Bluetooth Electronics

Control your electronic project with an Android device. This app communicates using Bluetooth to an HC-06 or HC-05 Bluetooth module in your project. This app comes with a library containing 11 Bluetooth examples for Arduino. It can also be used with Raspberry Pi or any other rapid prototyping system in which you have included a suitable Bluetooth module to your project.

Ideal for learning electronics in a fun way.
Ideal for rapid prototyping a new idea.
Ideal for exhibiting your project.

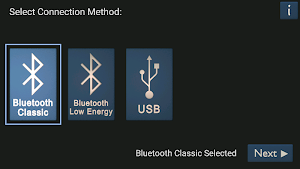

Some electronics skills required. Requires an Android device with Bluetooth capability enabled. Version 1.1 only works with Bluetooth Classic. Version 1.2 supports Bluetooth Low Energy and USB connectivity in addition to Bluetooth Classic.

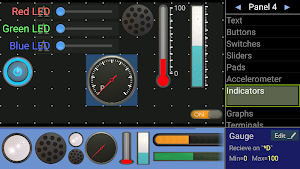

Large selection of controls available including buttons, switches, sliders, pads, lights, gauges, terminals, accelerometers and graphs. Drag and drop them onto the panel grid. Then edit their properties.

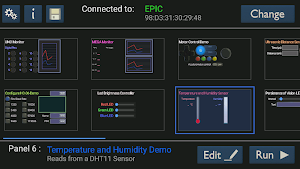

20 customisable panels available. Import/Export panels.

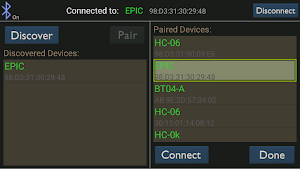

Discover, Pair and connect to Bluetooth devices. Then click Run to use the panel.

Library of 10 Arduino Examples to get you started:

LED Brightness - PWM with a Slider control
RC Car demo – Basic Button controls
Persistence of Vision – Text control
Repeater Demo – Send and Receive Terminals
Ultrasonic Distance Sensor - Light Indicator
MEGA Monitor – Graphs
UNO Monitor – More graphs
Temperature and Humidity – Temperature Gauge
Configure HC-06 Demo – In-case you want to change Baud rate
Motor Control Demo – Accelerometer and pad controls

Version 1.3 enables panels to be built/modified with commands sent from connected device.

Finally, You undertake any electronic project at your own risk. Please be careful. Consider what is going to happen to your project if the Bluetooth connection is lost, or the Android device crashes.
