Superheat Calculator - HVAC

About Superheat Calculator - HVAC

HVAC Superheat & Subcool Calculator is the professional field diagnostic tool for AC service and system commissioning. Calculate superheat, subcooling, and saturation for 10 refrigerants including R-410A, R-454B (EPA 608 transition), and R-32 with smart charge diagnostics and color-coded results for instant field diagnostics.

FEATURES:
Instant Superheat & Subcooling Calculation — Get results in seconds
Smart Charge Diagnostics — Normal, Low, or High with recommendations
10 Refrigerants Supported — R-410A, R-22, R-454B, R-32, R-407C, R-134a, R-404A, R-507A, R-290, R-717
Metering Device Support — TXV (expansion valve) or fixed orifice
Color-Coded Results — Green/yellow/red for quick decisions
P-T Saturation Data — From Honeywell, Chemours, Arkema specs
Zeotropic Blend Support — Correct bubble/dew handling for blends

100% OFFLINE:
All refrigerant data built-in. Works on job sites without cellular coverage.

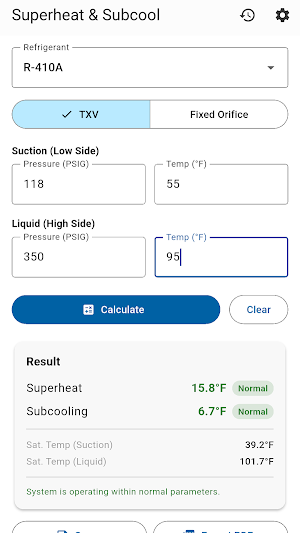

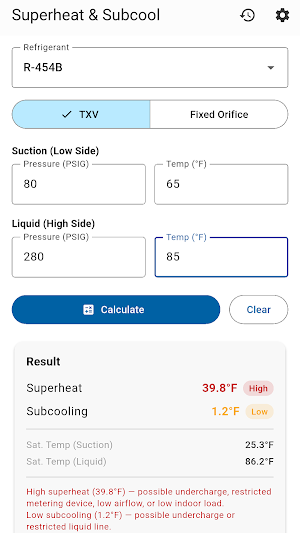

HOW IT WORKS:
1. Select refrigerant (R-410A, R-454B, R-32, etc.)
2. Select metering device (TXV or fixed orifice)
3. Enter suction pressure & temperature
4. Enter liquid pressure & temperature
5. Get instant superheat, subcooling & charge diagnosis

UNDERSTANDING RESULTS:
Superheat — Temperature rise above saturation on low side. Normal 10-20°F TXV, 15-25°F fixed orifice. Low indicates overcharge; high indicates undercharge or low airflow.

Subcooling — Temperature drop below saturation on high side. Normal 10-20°F. Low indicates undercharge; high indicates overcharge.

DIAGNOSTICS:
Green — Normal charge, optimal operation
Yellow — Borderline condition requiring attention
Red — Undercharge, overcharge, or airflow issue

SUPPORTED REFRIGERANTS:
R-410A (residential), R-22 (legacy), R-454B (EPA replacement), R-32 (mini-splits), R-407C (commercial), R-134a (auto AC), R-404A (refrigeration), R-507A (low-temp), R-290 (propane), R-717 (ammonia)

PROFESSIONAL TOOLS:
Save calculation history
Export PDF reports
Dark theme
Ad-free

USE CASES:
AC service calls, refrigerant charge diagnostics, equipment commissioning, troubleshooting complaints, EPA 608 certification study, preventive maintenance checks, system optimization, R-454B transition preparation.

PERFECT FOR:
HVAC technicians, refrigeration mechanics, AC contractors, HVAC apprentices, building engineers, commissioning specialists, HVAC students.

All P-T data from manufacturer specifications with correct blend calculations.

Part of HVACTools Suite — professional HVAC technician tools for field service and diagnostics.
