HVAC Refrigerant P-T Chart

About HVAC Refrigerant P-T Chart

HVAC Refrigerant P-T Chart provides instant pressure-temperature lookup for HVAC technicians and AC service professionals. Instant pressure-temperature lookup for 10 EPA 608 refrigerants including R-454B (next-gen EPA transition replacement) and R-32 mini-split systems with ASHRAE-verified, manufacturer-grade saturation data from Honeywell, Chemours, and Arkema.

FEATURES:
Bidirectional Lookup — Pressure → Temp and Temp → Pressure
10 Refrigerants Supported — R-410A, R-22, R-454B, R-32, R-407C, R-134a, R-404A, R-507A, R-290, R-717
Full P-T Saturation Tables — Complete data across all pressures
Bubble & Dew Points — Zeotropic blend data (R-454B, R-407C, R-404A)
Temperature Glide Display — Shows glide range for blends
Linear Interpolation — Precise results between data points

100% OFFLINE OPERATION:
Works without internet connection. All saturation data built into the app — no server calls, no delays. Perfect for job sites without cellular coverage.

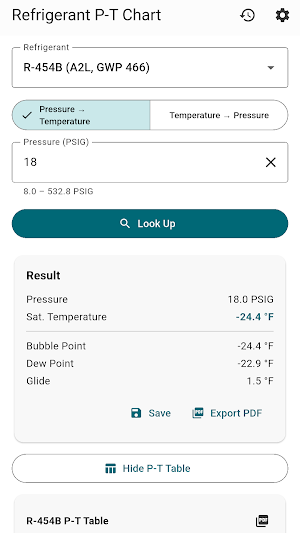

HOW IT WORKS:
1. Select your refrigerant (R-410A, R-454B, R-32, etc.)
2. Choose lookup: Pressure → Temp or Temp → Pressure
3. Enter your value (PSIG or °F)
4. Get instant saturation results with bubble/dew for blends

WHY YOU NEED THIS APP FOR AC SERVICE:
Every air conditioning service call requires instant saturation temperature verification. Whether measuring superheat, subcooling, or verifying system pressures during EPA 608 compliance work — you need accurate P-T data in your pocket. This app provides ASHRAE-verified saturation tables for all 10 common EPA 608 refrigerants with R-454B transition support.

SUPPORTED REFRIGERANTS:
R-410A (residential AC & heat pumps), R-22 (legacy systems), R-454B (EPA replacement 2025+), R-32 (mini-splits), R-407C (commercial AC), R-134a (auto AC), R-404A (refrigeration), R-507A (low-temp), R-290 (propane), R-717 (ammonia)

PROFESSIONAL TOOLS:
Save lookup history for reference
Export professional PDF reports
Dark theme for outdoor visibility
Ad-free professional experience

PERFECT FOR:
HVAC technicians on AC service calls
Refrigeration mechanics and EPA 608 certified technicians
AC installers and air conditioning contractors
HVAC apprentices and students preparing for EPA 608 certification
Building maintenance engineers
Equipment commissioning specialists and diagnostics professionals

All P-T data sourced from Honeywell, Chemours, and Arkema manufacturer specifications.

Part of HVACTools Suite — professional HVAC technician and refrigeration calculator collection.
