About Led Resistor
A practical tool for electronics hobbyists, students, and
makers who work with LEDs.
CALCULATORS

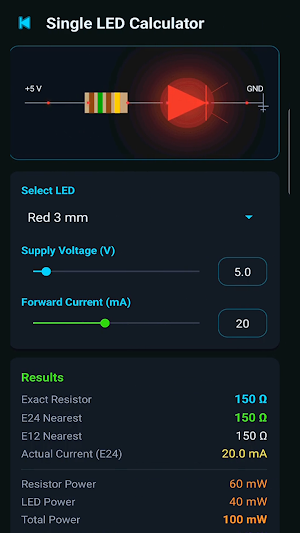

• Single LED — enter supply voltage and forward current, get the exact resistor
value snapped to E24/E12 series with 4-band and 5-band colour codes.
• Series string — calculates the single dropping resistor for any number of
LEDs in series.
• Parallel array — per-LED or shared resistor mode, shows per-branch and total
current.

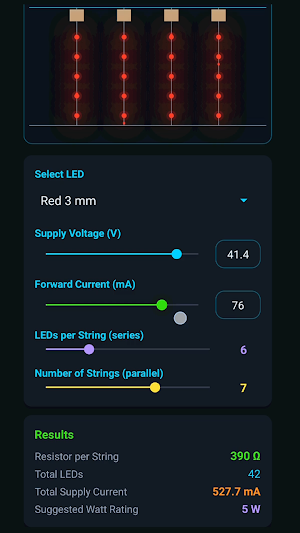

• Matrix (series-parallel) — handles multi-string arrays with a resistor per
string.
• RGB LED — independent resistor for each channel (R/G/B), common-cathode or
common-anode, with a live colour preview.
CIRCUIT VIEWS
Every calculator shows an animated circuit diagram that responds to your
inputs — LED brightness scales with forward current, particles flow along
the wires.
LED LIBRARY
109 LEDs across 26 categories: standard 3/5/8/10 mm, high-brightness,
high-power (1 W – 10 W), SMD (0402 to 5730), COB modules, RGB, bicolour,
IR, UV, flashing, 7-segment, and LED strips (12 V and WS2812).
Tap any LED to view its full datasheet and open it directly in the calculator.
GRAPHS
Interactive I–V curves (Shockley model), resistor value vs supply voltage,
and resistor/LED power vs current — pinch to zoom, drag to pan.
LEARN
Ten built-in lessons covering LED basics, forward voltage, resistor selection,
colour codes, series/parallel wiring, RGB LEDs, high-power LEDs, and strips.
