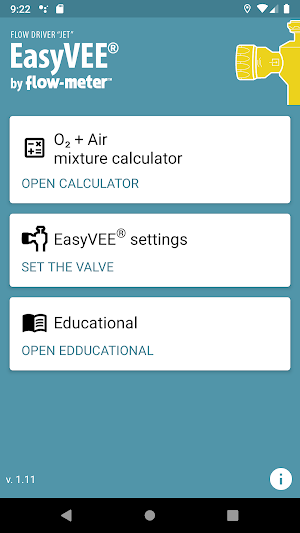

EasyVEE

The App provides the healthcare professional with all guidelines to set the required flows for the ongoing respiratory therapy.

This can be used as further support to the “Tables of mixtures – FiO₂” referred to the specific PEEP pressures and provided with the Operating Manual of EasyVEE® “JET” flow driver.

It is possible to choose between the two possible applications foreseen for the flow driver:
- Alternative 1: application for twin high flow flowmeter
- Alternative 2: application for single high flow flowmeter


1) APPLICATION FOR TWIN HIGH FLOW FLOWMETER

This alternative allows to supply oxygen to the flow driver EasyVEE® through a twin group high flow Oxygen flowmeter (Flowmeter [1a] with end of scale 30 L/min + Flowmeter [1b] with end of scale 15 L/min or 30 L/min), which is connected to the hospital centralized gas distribution plant.

You can select the following parameters:
- PEEP set value
- Total flow of the mixture to be supplied to the patient
- FiO₂ value necessary for the ongoing therapy

The calculator will show the flow values to be set on the two flowmeters in order to obtain the above parameters.

Once the value of PEEP is selected, it is possible to identify the resulting values of the mixture total flow supplied to the patient, with the related FiO₂, simply by inserting the two Oxygen flow values set for the flowmeters.

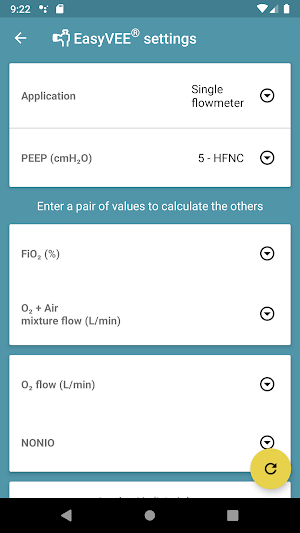

2) APPLICATION FOR SINGLE HIGH FLOW FLOWMETER

This alternative allows to supply oxygen to the flow driver EasyVEE® through a single high flow Oxygen flowmeter (flow range 50 L/min with double scale: 2÷10 L/min e 10÷50 L/min), which is connected to the hospital centralized gas distribution plant.

You can select the following parameters:
- PEEP set value
- Total flow of the mixture to be supplied to the patient
- FiO₂ value necessary for the ongoing therapy

The calculator will show the flow values, to be set on the flowmeter and on the vernier of the adjustable knob for the ambient air intake, in order to obtain the above parameters.

Once the value of PEEP is selected, it is possible to identify the resulting values of the mixture total flow supplied to the patient, with the related FiO₂, simply by inserting the Oxygen flow value set for the flowmeter and the indication on the vernier of the adjustable knob for the ambient air intake.

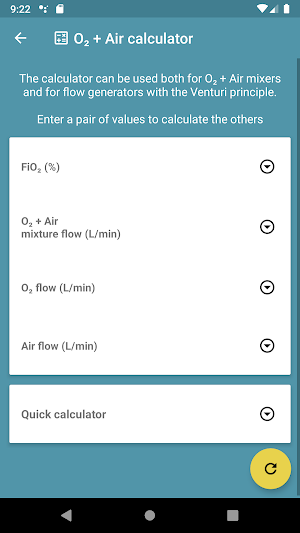

Given two of the below values, the App also provides an easy calculator of the O₂ + Air mixture, allowing the user to obtain the remaining two values:
- Flow Mixture O₂ + Air (L/min)
- FiO₂ (%)
- O₂ Flow (L/min)
- Air Flow (L/min)
