ConductoresPro

About ConductoresPro

Carry Electrical Engineering in your pocket!
Conductors Pro is the ultimate tool designed by engineers for engineers, electricians, technicians, and students. Forget about carrying around printed tables, complex standards, or relying on computer spreadsheets. Perform critical conductor sizing calculations instantly, accurately, and based on industry standards (NEC/ASTM).

This application simplifies the electrical installation design and verification process, allowing you to make confident decisions in the field or in the office.

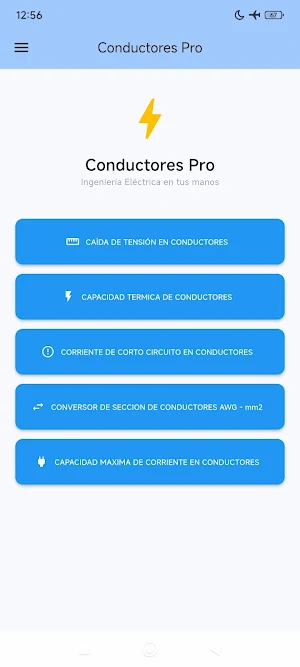

It features 5 Calculation Modules:
1. Maximum Current Capacity (Ampacity):
• Determines the maximum current a conductor can handle based on its gauge.

• Automatically applies correction factors for ambient temperature and conductor grouping.

• Supports installation methods: Open Air, Duct/Tray, or Buried.

• Based on standard tables such as NEC 310.15.

2. Voltage Drop:
• Calculates voltage drop in single-phase and three-phase feeders.

• Obtains the voltage regulation percentage, final voltage, and adjusted current.

• Considers the power factor, conduit material, and safety factor.

3. Thermal Capacity:
• Evaluates the actual capacity of the conductor considering the thermal resistivity of the soil (RHO) and the operating temperature.

• Ideal for underground installations or complex duct banks.

4. Short-Circuit Current:
• Verifies if the selected conductor can withstand the energy of a fault.

• Calculation based on thermal damage curves (fault clearing time and maximum insulation temperatures).

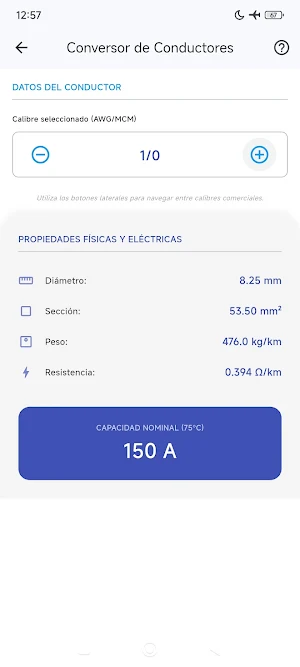

5. Conductor Converter (AWG - mm²):
• Instant query of physical and electrical properties.

• Equivalencies between AWG/kcmil and mm².

• Data on outside diameter, weight per km, and electrical resistance (Ohms/km).

Why choose Conductors Pro:
* Intuitive Interface: Clean and easy-to-use design, without distractions.

* Instant Results: Modify variables and see how the results change in real time.

* Integrated Guides: Each section has a help button (?) that explains the formulas and criteria used.

* Safety: Avoids calculation errors that could cause overheating or installation failures.

Ideal for:
* Electrical distribution projects.

* Industrial and residential installations.

* Construction supervision and technical auditing.

* Electrical engineering students.

Download Conductors Pro today and professionalize your electrical calculations!

Keywords: Electricity, Electrical Calculations, Voltage Drop, Ampacity, NEC, Conductors, Cables, AWG, Electrical Engineer, Electrician, Voltage, Short Circuit, Sizing.
