Pipetionary: Piping Data

Pipetionary: Piping Data is a fast, offline reference built for piping engineers, designers, and field teams. Access critical piping data instantly to accelerate design, review, and installation work—without switching tools or digging through manuals.

Core capabilities

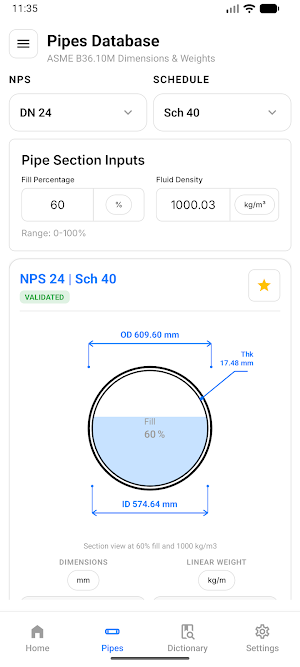

• Pipe dimensions by NPS and schedule (ASME B36.10M / B36.19M)

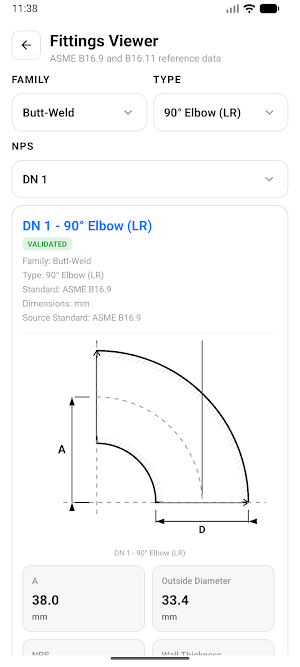

• Fittings data: butt-weld, socket-weld, and threaded (ASME B16.9 / B16.11)
• Flange specifications with RF, RTJ, and FF facings (ASME B16.5)

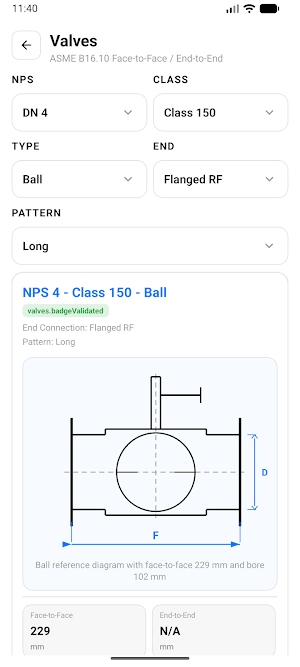

• Valve dimensions: Ball, Gate, Globe, Check, Butterfly, Plug
• Technical dictionary with category-based filtering
• Quick calculations: Hydrotest Volume, Head Loss, Wall Thickness
• Standards library: ASME, MSS, API references
• Clear technical diagrams for fast component visualization

Designed for real workflows
• Optimized for speed in both office and field environments
• Fully offline — no connection required
• Multilingual: English, Spanish, French, Portuguese

Important
Pipetionary is a reference tool to support engineering work. Final values must always be validated against project specifications, applicable codes and standards, and manufacturer data.
