Electric Circuits Simulator

«Electric Circuits Simulator» mobile app is intended for simulation training in the principles of constructing relay-contactor control circuits for a three-phase asynchronous electric drive using standard electrical components – circuit breakers, contactors, relays, push-button posts, etc.

Main functions of the software product:

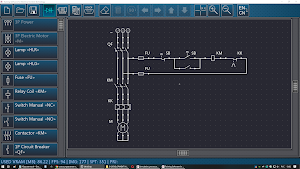

-Construction and editing of a schematic diagram of an electrical circuit;

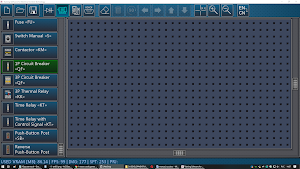

-Construction and editing of a simulation model of a laboratory stand;

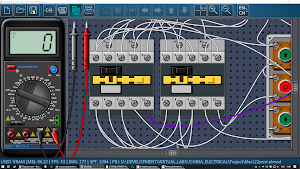

-Software simulation of an assembled electrical circuit with the ability to interactively change the state of devices;

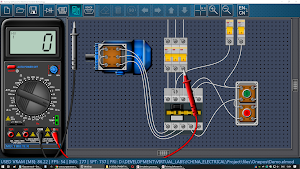

-Simulated measurement of voltage in a circuit using a virtual multimeter;
-Working with user project files;
-Interaction with a physical relay board to implement software control of the electric drive (optional).
