Arduino Nano Studio

About Arduino Nano Studio

The Easiest, No-Code solution out there to turn your Arduino Nano into a portable data logger for ADCs, and multiple I2C sensors.

+ Monitor/Control I/O pins

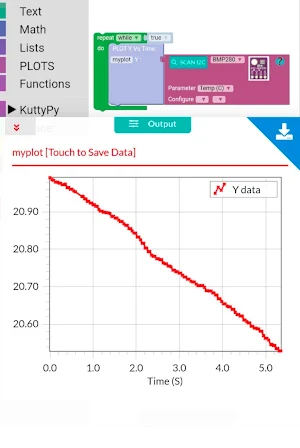

+ Measure and plot ADCs
+ Read data from 10+ I2C sensors. Simply Plug and Play. No code needed
+ Scratch Programming Interface .
+ Combine with phone sensors such as luminosity, accelerometer, gyro etc

How to Use
+ Connect your Arduino Nano to your phone using an OTG cable or a C to C cable(For C type nano)
+ Run the app, and grant permissions to use the device connected.
+ The title bar will become a red and green gradient indicating a connected device with missing control firmware(kuttypy).
+ Click the Download button on the titlebar. This will download the right firmware, and attempt a reconnect in 2 seconds. You only need to do this again if you upload some other program to your Arduino Nano.

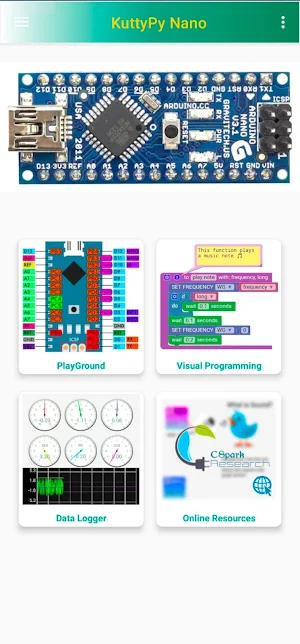

+ Now the titlebar turns green, title text becomes 'KuttyPy Nano', and the device is ready to be used.

Features:

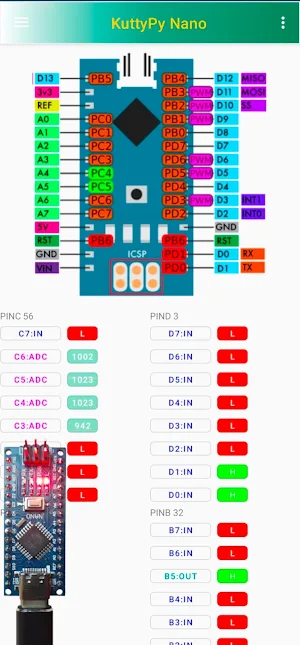

Playground: Control I/O pins from the graphical layout. Tap on pins to toggle their nature between Input/Output/ADC(For Port C only). The corresponding indicator either shows input state, or allows setting output, or shows the ADC value.
Visual Code: A blockly based programming interface with 50+examples to control the hardware, read sensor data, phone sensor data etc

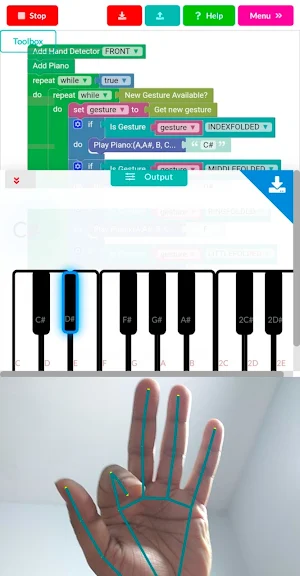

Also includes AI based image gesture recognition for writing fun games.

Export logged data into CSV, PDF etc, and easily share over mail/whatsapp.
