Cardiospy Mobile ECG

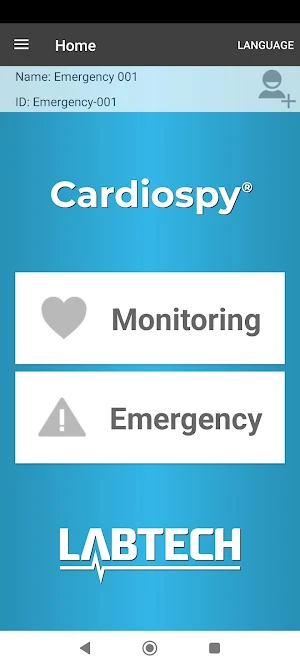

--- PLEASE TRY THE MOBILE ECG SOFWARE - EMERGENCY - SELECT DEVICE - DEMO RECORDER ---

The EC-12RM is a compact ECG device, which can forward real-time, 12 channel ECG signals to any Android device (e.g.: tablet or smartphone) via Bluetooth connection. This way the device can make excellent quality ECG records in a mobile and fast method. We can measure certain sections of the ECG and customize the on-screen display of the ECG to suit our own needs. There are several methods to forward each record: jpeg and MFER formats are both accepted in the Cardiospy could application.


Supports Android 3.x - 9 devices
Portrait and landscape display mode
Bluetooth connection with the ECG recorder
Sends reports in JPG or MFER format via email
It can save records to SD card then syncronise to Cardiospy
software via USB cable
Send records to Cardiospy’s cloud application

ECG channels: 12 simultaneous
Recording rate: 512, 1000 Hz
A/D resolution: 16 bit
Frequency response: 0.05-150 Hz
PC connection: Wireless Bluetooth
Power supply: 2 X 1,2 V rechargeable batteries
Size: 125 X 68 X 32 mm
Weight: 140 g

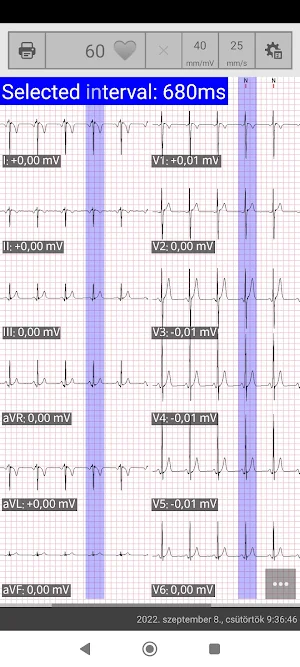

Real-time ECG display
12-channel resting ECG
