PipeAtlas

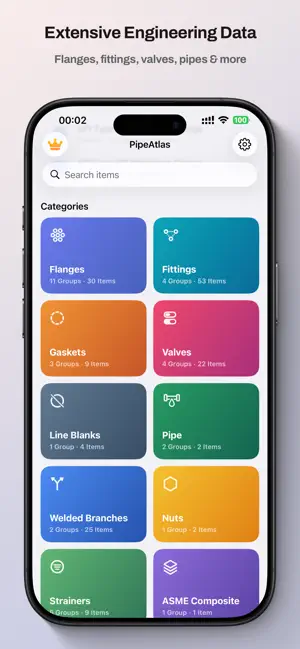

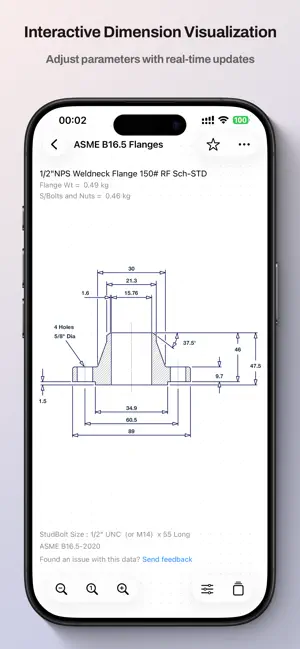

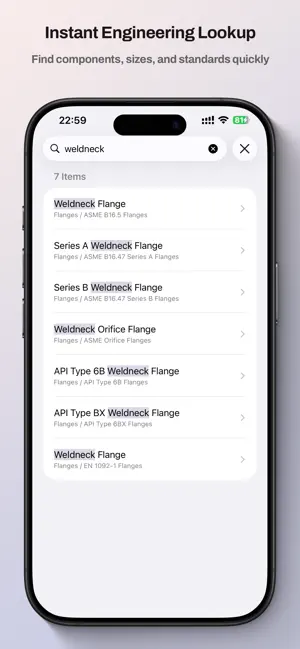

PipeAtlas is a professional piping engineering reference app for piping engineers, mechanical engineers, designers, fabricators, and inspectors. Access essential piping dimensions, weights, and engineering data anytime — in the office, workshop, or field. PipeAtlas provides a comprehensive database covering flanges, fittings, valves, pipes, gaskets, branch connections, fasteners, and piping design references based on international standards. FEATURES • Pipe dimensions and weights • Flange dimensions and weights • Pipe fitting dimensions and weights • Valve dimensions and face-to-face data • Gasket and fastener reference data • Piping component lookup • Engineering design references DATA COVERAGE PipeAtlas covers commonly used piping components and standards: 1. Flanges 1.1 ASME B16.5 Flanges • Weld Neck Flange • Slip-On Flange • Blind Flange • Threaded Flange • Socket Weld Flange • Lap Joint Flange 1.2 ASME B16.47 Flanges • Series A Flanges • Series B Flanges • Weld Neck Flange • Blind Flange 1.3 API 6A Flanges • Type 6B • Type 6BX 1.4 Other Flange Standards • ASME B16.36 Orifice Flanges • ASME Compact Flanges • EN 1092-1 Flanges • BS 10 Flanges • Hub and Clamp Connections 2. Pipe Fittings 2.1 ASME B16.9 Butt Weld Fittings • Elbows • Tees • Reducers • Caps 2.2 ASME B16.11 Forged Fittings • Threaded Fittings • Socket Weld Fittings 3. Valves ASME B16.10 Valve Dimensions Supported valve types: • Gate Valve • Globe Valve • Ball Valve • Check Valve • Butterfly Valve • Control Valve Including: • Flanged Valves • Butt Weld Valves • Threaded Valves • Socket Weld Valves 4. Line Blinds & Spacers ASME B16.48 Line Blanks • Spectacle Blind • Line Spade • Spacer • RTJ Ring Types 5. Welded Branch Connections Supported components: • Weldolet • Sockolet • Threadolet • Elbolet • Latrolet • Nipoflange • Flanged Branch Connections 6. Gaskets Supported gasket data: • Flat Ring Gaskets • Spiral Wound Gaskets • RTJ Gaskets (ASME B16.21) • Type R / RX / BX Rings 7. Pipes Pipe dimensions based on: • ASME B36.10M • ASME B36.19M Including: • Pipe by Schedule • Pipe by Wall Thickness 8. Fasteners • ISO Nuts • UNC Nuts 9. Design References Engineering references include: • ASME Composite Dimensions • Pipe Flexibility Reference • Pipe Leg Calculation • Pipe Loop Calculation • Safe Pipe Spans • Safe Pipe Spacing SUPPORTED STANDARDS • ASME B16.5 • ASME B16.9 • ASME B16.10 • ASME B16.11 • ASME B16.36 • ASME B16.47 • ASME B16.48 • ASME B16.21 • ASME B36.10M • ASME B36.19M • API 6A • EN 1092-1 • BS 10 Terms of Use: https://www.apple.com/legal/internet-services/itunes/dev/stdeula/
