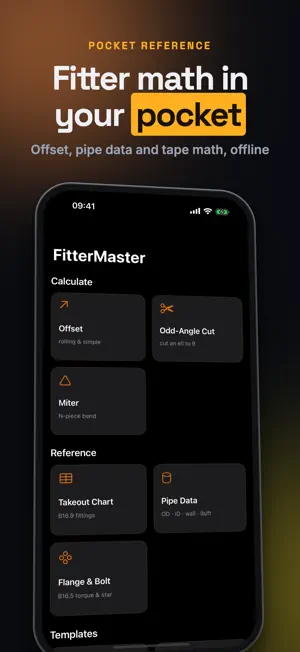

FitterMaster: Pipe Fitter Calc

FitterMaster is the pipe fitter's pocket reference: rolling offsets, fitting takeouts, flange bolt-up, miter and saddle templates - fast, accurate, and fully offline. No subscription. Pay once, own it forever. BUILT FOR THE FIELD - Works 100% offline. No signal on the jobsite? Everything still works. No license checks, ever. - Feet-inches-sixteenths input everywhere. Think in 16ths, not decimals. - Full metric mode (mm) that actually works. - Save your spools and reuse the numbers that worked. OFFSET CALCULATOR (45 DEGREES FREE FOREVER) - Set + roll to true offset, travel, and run for any fitting angle: 5.625, 11.25, 22.5, 30, 45, 60, 90. - Cut length done for you: travel minus takeouts minus weld gaps. Mark the pipe and cut. - Clear diagram with every result. TAKEOUTS AND PIPE DATA - ASME B16.9 takeout chart: 90 LR, 45 LR, 90 SR, 180 return, tees, caps - NPS 1/2 to 24. - Odd-angle cuts: takeout and center-to-face to cut any angle from a standard 90. - Pipe schedules 10/40/80/160/STD/XS/XXS: OD, ID, wall, weight per foot. FLANGE AND BOLT-UP - ASME B16.5 class 150/300/600: bolt count, stud size, bolt circle. - Star tightening sequence diagrams and 3-pass torque targets (30/60/100 percent). TEMPLATES AND ORDINATES - Miter elbows: cut angles, segment lengths, 16-line wrap template ordinates. - Saddle-on tees and laterals: 16 numbered ordinates, ready to lay out. - Dummy legs: on straight runs and on the back of a 90 LR ell - solved with real geometry, not approximations. ACCURACY YOU CAN CHECK Every multiplier, takeout, and ordinate is verified against published ASME B16.9 / B16.5 / B36.10 tables and cross-checked with independent numeric solvers. If you find a number that is off, we fix it. FREE VS PRO Free forever: the full offset calculator at 45 degrees (including cut length), Schedule 40 pipe data, and the tape-math converter. One affordable one-time purchase unlocks every angle, every chart, every template. No subscription. No ads. No account. Made for pipefitters, steamfitters, pipe welders, plumbers, sprinkler fitters, boilermakers, and apprentices working toward their ticket. COMMON QUESTIONS Does it work offline? Yes. Everything runs on the phone. No signal needed on the jobsite, and no licence check, ever. Is it a subscription? No. One purchase, yours forever. What is free and what is Pro? Free: the 45° offset calculator with cut length, Schedule 40 pipe data, and the tape math. Pro: every other fitting angle, odd-angle cuts, miter, saddle and lateral templates, dummy leg, the B16.9 takeout chart, B16.5 flange bolt-up, the other schedules, saved spools, metric mode, and no ads. Does it do metric? Yes, a full mm mode — it is part of Pro. Where do the numbers come from? Published ASME B16.9, B16.5 and B36.10 tables, plus plain trigonometry. Every result comes with its diagram. Does it replace the spec or the drawing? No. It is a field calculator. The isometric, the spec and your foreman come first. Terms of Use: https://ghapps1.wordpress.com/terms-condition/ Privacy Policy: https://ghapps1.wordpress.com/privacy-policy/
