MilliDraw - Measure & Draw

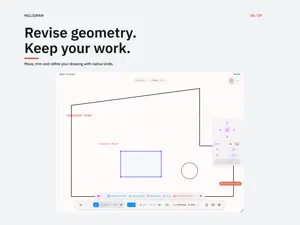

Turn real-world measurements into clear drawings on iPad. Sketch a custom cut, an irregular wall or a site plan, enter exact values, and share a dimensioned PDF or a DXF for CAD. DRAW AND REFINE • Work in millimeters, centimeters, decimeters, meters, inches or feet. • Draw lines, circles, arcs and custom outlines with Apple Pencil. • Enter lengths, angles, radii and exact X/Y movement. • Revise geometry with selection, snapping, Trim and Undo/Redo. • Use line colors, weights, solid fills, hatching and dots. • Add freehand notes and movable text. • Scan or import a reference, calibrate one known distance, and draw over it. LIVE SURVEY Capture a room on an iPad Pro with LiDAR and save an interactive 3D model. Rotate and zoom, tap edges for estimated lengths, and remove unwanted segments or detected objects with Undo. Open its floor plan as a separate editable 2D drawing. Check important fabrication measurements with a tape or laser: scan dimensions are estimates. PHOTO VIEW — BETA Explore a photographic reference for a saved survey. Create it on iPad from photos saved with the survey, or import a supported PLY/SPLAT file. Reconstruction quality varies with the capture and scene; incomplete areas and artifacts can occur. Photo View complements the measured room model and is not a guarantee of photographic detail or measurement accuracy. CONNECT AN AI AGENT WITH MCP Let a compatible AI app read and edit the open drawing or saved survey overlays. Add https://millidraw.com/mcp as a remote server, enter the temporary iPad code in the authorization page, and approve the named agent on your iPad. No Mac bridge or pairing JSON is required. Each AI app needs its own approval. Disconnect to pause access or forget the connection to revoke it. Online control requires internet, MilliDraw open, and a client supporting remote MCP Streamable HTTP with OAuth and automatic client registration. A model name alone does not establish compatibility. Requested commands and results pass through the MilliDraw service and may be sent to the AI provider by your client. Drawings are not stored as cloud documents by the relay. EXPORT AND KEEP WORKING Export readable PDFs and DXF files, or reopen drawing data from MilliDraw PDFs. Core drawing and editing work offline without signing in or subscribing. New room capture requires iPad Pro with LiDAR; other supported iPads can use drawing tools and compatible saved or imported content. MilliDraw is a focused measured-drawing tool, not a full CAD system.
