Steel Profiles

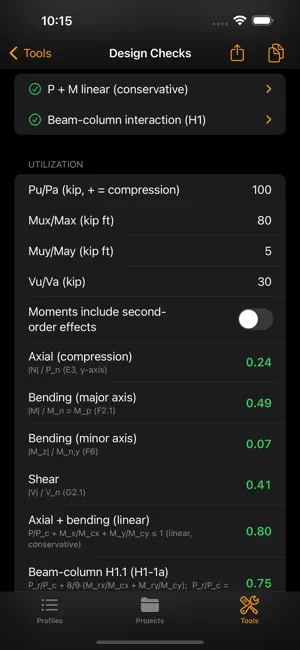

Steel Profiles is the steel section reference for structural engineers, fabricators, detailers and contractors. Look up nearly 10,000 sections from six international standards, check them to Eurocode 3 or AISC 360, and keep your take-offs in sync across iPhone, iPad and Mac. NEW IN 6.0 - Design checks to EN 1993-1-1 and AISC 360-22: classification, axial force, bending, shear, flexural and lateral-torsional buckling, beam-column interaction, with every formula shown - Section Builder: welded I and box sections, built-up channels, tees and angles, plated beams, with full properties - Bolts: metric M8 to M64 and imperial 1/2" to 1 1/2", with shear, tension, bearing and slip resistance - Steel grades: EN 10025, EN 10210/10219, ASTM, CSA, AS/NZS and JIS, with strengths by thickness - iCloud sync of favorites, projects and saved sections - Bulb flats (HP) to EN 10067 - PDF and CSV export, imperial fractions and smarter search (HEA 200, HEA200, W10x49) SECTION PROPERTIES - Complete geometric and structural properties with descriptions and a cross-section drawing - Filters by area, weight, moment of inertia, section moduli and radii of gyration - Favorites, Spotlight search and Siri TOOLS - Equivalent Finder: the closest section in another standard, optionally from the same shape family - Comparator: up to three sections side by side - Weight lists organized in projects and folders, exported to CSV - Unit converter for engineering units LIBRARIES USA: AISC 16 and AISC 16 SI (16th Edition), AISC 14 and AISC 14 SI (14th Edition) Canada: CISC 92 Europe: IPE, HE (HEA, HEB, HEM, HEAA), HD, HL, HP, IPN, UPE, UPN, angles, tees, bulb flats, hot-finished and cold-formed hollow sections United Kingdom: UB, UC, UBP, J, PFC, T, angles, hollow sections Australia / New Zealand: AS/NZS FREE AND PAID The free download includes dimensions for every library, the weight calculator, Section Builder, bolts, steel grades, the unit converter and iCloud sync. Unlock a library to see its full properties and run design checks on its sections, or get All Libraries for everything. Results are design aids for preliminary sizing and must be verified by a qualified engineer.
