Electronic Component Pinouts
Adriano Moutinho Education iPhoneiPadiPod touch
Electronic Component Pinouts is a paid Education app for iPhone and iPad by Adriano Moutinho. Rated 4.0/5 from 7 ratings. Requires iOS 13.0.
- Rating
- 4.0
- 7 ratings
- Price
- 4.99 USD
- on the App Store
- Size
- 37 MB
- Age 17+
- Updated
- Sep 27
- 2026 · v1.12.0

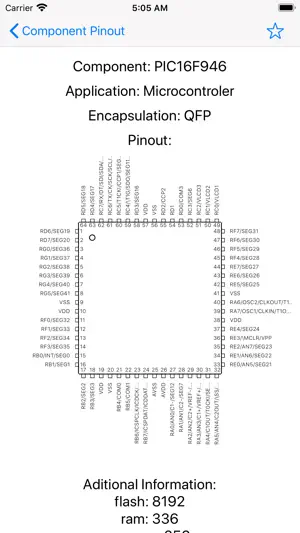

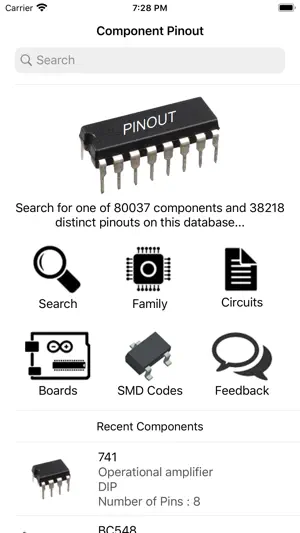

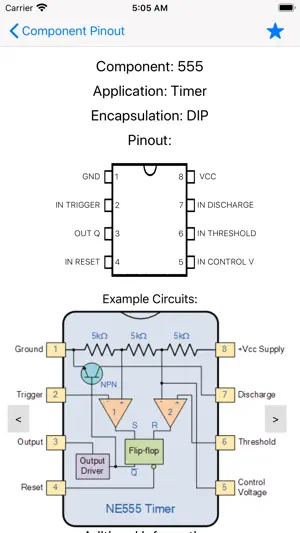

Screenshots
About Electronic Component Pinouts
This application provides a offline database with more than 80000 electronic component pinouts. Chips, Transistors, Diodes, Triacs, Microprocessors and a lot more. If you don't have a chip pinout, please send a feedback and we can add to our database. This app have information on transistors, triacs, diodes, memory chips, microcontrollers, Arduino Boards, shields and more! Component Pinouts is fast and does not require internet access to search. More than 23000 distinct pinouts with a lot of equivalents.
Ratings & reviews
4.0
7 ratings
What’s new
Version 1.12.0 · Updated September 27, 2026
- Sharing now shares the whole component page - 9 new translations - Amazon links to buy products, only if the user clicks on the button (buy it or amazon search) - bug fixes
App privacy
The developer, Adriano Moutinho, reported these privacy practices to Apple.
Data Not Collected
The developer does not collect any data from this app.
