Screw Flight Pro

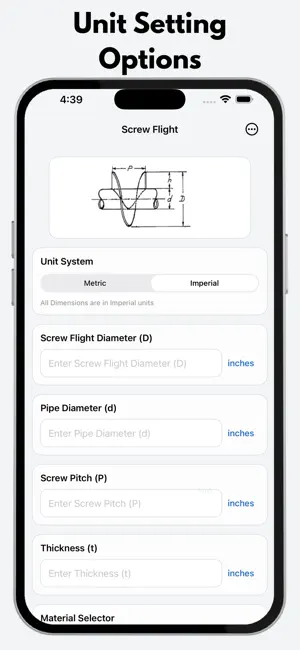

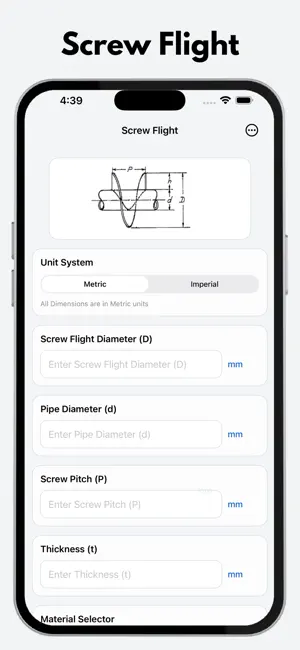

Screw Flight Pro is a professional engineering calculator for designing and developing screw conveyor and auger screw flight flat patterns. It helps fabricators, mechanical engineers, conveyor manufacturers, workshop professionals, and students generate accurate screw flight developments quickly without complex manual calculations. The app calculates flat pattern dimensions for screw flights, supports radial cut and full ring layouts, and provides instant weight estimation for improved material planning and fabrication accuracy. Designed for real workshop applications, it delivers reliable results in a simple and easy-to-use interface. Features • Accurate screw flight flat pattern development • Radial cut and full ring layout modes • Instant flight weight calculation • Automatic geometry calculations • Supports Metric and Imperial units • Automatic internal unit conversion • Fast and workshop-friendly interface • No internet connection required Calculate • Flight Width • Inner Radius • Outer Radius • Alpha Angle • Beta Angle • Developed Lengths (X1, X2, A1, A2) • Flight Weight per Piece Input Parameters • Screw Flight Outside Diameter • Pipe or Shaft Diameter • Flight Pitch • Material Thickness • Material Density Ideal For • Screw Conveyor Fabrication • Auger Manufacturing • Spiral Flight Development • Sheet Metal Fabrication • Mechanical Engineering • Industrial Fabrication Workshops • Conveyor Equipment Manufacturing • Workshop Production Benefits • Eliminates manual calculations • Improves fabrication accuracy • Saves workshop time • Reduces material waste • Assists material estimation and costing • Produces reliable fabrication dimensions Whether you are manufacturing screw conveyors, augers, spiral flights, or other conveying equipment, Screw Flight Pro provides accurate flat pattern calculations and weight estimation to simplify fabrication, improve productivity, and deliver dependable workshop results.
