AQASYS 11 SCADA - Leitsystem

About AQASYS 11 SCADA - Leitsystem

Do you want to monitor your system mobile and conveniently? Operate, control and analyze your stations and systems on your mobile device using the full range of functions of the AQASYS control system - via dashboards, process images, hydrographs, reports, maintenance and remote alarms.
Use the same menu structure and icons as on the desktop and with the web client. User and rights management is automatically synchronized across all operating levels.

App features:

* Secure and easy login via AQASYS user accounts for quick access to your system monitoring and control
* Management of multiple systems in one app including easy access switching between the systems, e.g. on the sewer network and sewage treatment plant or as a supply association on several systems in different communities
* For extra login security, this is also possible via 2-factor authentication
* App connection to the control system server via internet or network connection. Can be used in LAN or WAN.
* Very simple and optimized operation for mobile devices (responsive design) - in AQ11 with an even clearer and fresher layout:
- Favorites list
- Recently visited pages
- Dashboard: For very extensive dashboards, the individual information tiles are automatically optimized and displayed individually for small screen sizes
* From a quick system check when on standby to full system control (if authorized) and analysis – easy via app

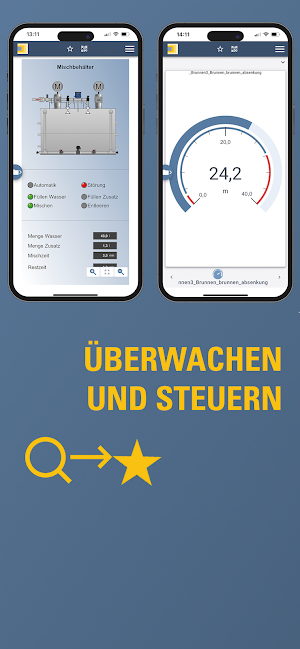

* Continuous operation and monitoring of the system and stations in the high-resolution process images (fully scalable SVG vector graphics; visualization via the identical process images as on the PC and in the web client)
* Fault message archive with display of all or only pending messages
* Message acknowledgment directly in the app
* Convenient overview and editing of phone numbers

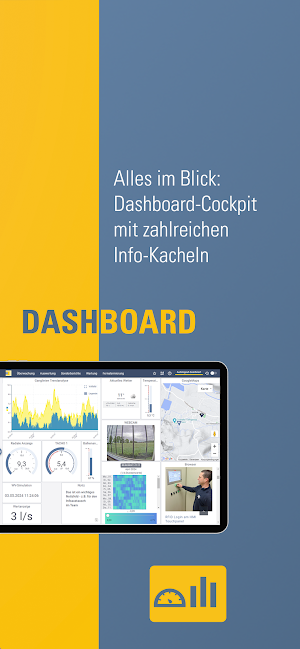

* Clear and highly functional dashboards

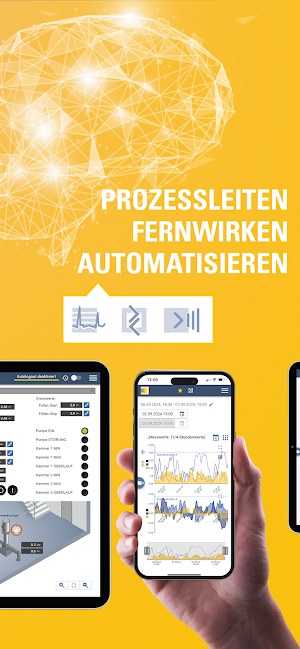

* Hydrograph graphics with freely selectable time period and time comparison (including delta evaluation) as well as data export
* View embedded webcam recordings and image archives for optimal visual process analysis
* Check and export your reports (daily, weekly, monthly, annual reports including special reports such as RÜB event logging) in the app
* NEW in AQ11: now also with FlexReports for freely definable reports (period, resolution, transposition, etc.) and conditional formatting
* Manual hand entry of values ​​and laboratory data
* Comprehensive maintenance management directly in the app: Access maintenance documents and machine data sheets, log maintenance work and set running times and maintenance dates

SYSTEM REQUIREMENTS - CLIENT:
* Android version: 8+
* AQASYS: Version 11, from release 11.1

SYSTEM REQUIREMENTS - SERVER:
* AQASYS SCADA process control system from version 11.1
* named user license
* Inquiry from your system integrator or directly from SCHRAML ([email protected])


TERMS OF USE:

The use of this application is subject to the General Terms and Conditions of SCHRAML GmbH https://www.schraml.de/index.php/schraml-agb/ as well as the data protection guidelines of SCHRAML https://www.schraml.de/index.php/datenschutzerklaerung/
