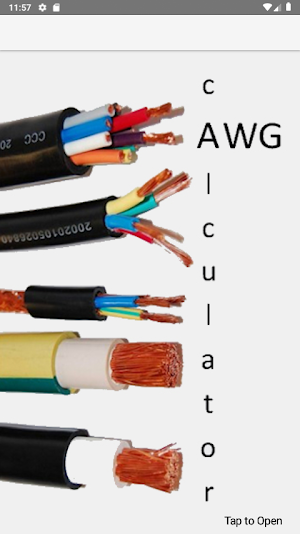

American Wire Gauge (AWG) Calculator Screenshot 0
American Wire Gauge (AWG) Calculator Screenshot 1

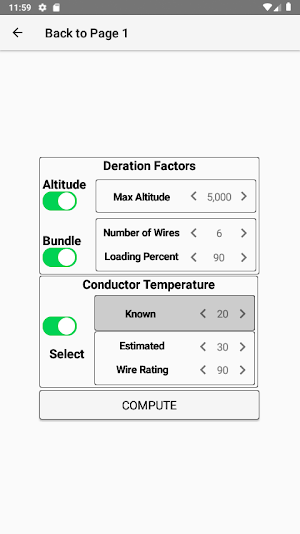

American Wire Gauge (AWG) Calculator Screenshot 2

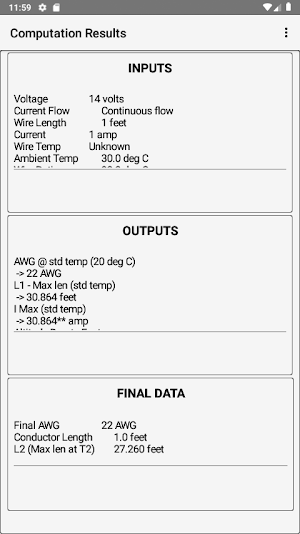

American Wire Gauge (AWG) Calculator Screenshot 3
Free website generator for mobile apps; privacy policy, app-ads.txt support and more... AppPage.net

About American Wire Gauge (AWG) Calculator

AWG Calculator
This app assists the aircraft (A&P) mechanic in determining the correct American Wire Gauge (AWG) wire size for given conditions, according to procedures outlined in FAA Publication AC 43-13 1B (Acceptable Methods, Techniques, and Practices - Aircraft Inspection and Repair), Chapter 11.
Conditions include circuit length, current, voltage, wire temperature (known or estimated) and derating factors for both altitude and wire bundle size/loading percentage.
The app also contains utilities that enable the aircraft mechanic to determine the following parameters without hands-on use of the AC 43-13 (when field/shop conditions make it impractical). Figures are referenced:

- Maximum Wire Length (standard temperature).
-- Input parameters: circuit voltage, current, current flow and AWG.
-- Output: L1.
-- Ref: AC 43-13 1B, Fig 11-2/3

- Maximum Current (standard temperature).
-- Input parameters: circuit voltage, current flow, wire length and AWG.
-- Output: Max Current.
-- Ref: AC 43-13 1B, Fig 11-2/3

- Altitude Deration Factor.
-- Input parameter: Max Altitude.
-- Output: Altitude Deration Factor.
-- Ref: AC 43-13 1B, Fig 11-5

- Bundle Deration Factor.
-- Input parameters: Wire Count and Loading Percentage
-- Output: Bundle Deration Factor.
-- Ref: AC 43-13 1B, Fig 11-

- IMAX (elevated temperature).
-- Input parameters: ambient temperature, conductor temperature rating and AWG.
-- Output: IMAX.
-- Ref: AC 43-13 1B, Fig 11-4a/b

When a chart does depict data due to input/output parameters exceeding chart limits, data is extrapolated and an appropriate warning ("** extrapolated data") is shown.

Disclaimer

The user of AWG CALCULATOR for any specific application without an independent verification of its accuracy does so at his/her own risk and assumes any and all liability resulting from such use. No warranty is offered as to the accuracy of results. Users should have a thorough understanding of the relevant theoretical criteria.

AWG Calculator
Copyright 2020
TurboSoftSolutions

If you find the free app useful and would like to make a contribution, visit the website:

https://www.turbosoftsolutions.com
