Vectro 3D

About Vectro 3D

Vectro 3D modernizes industrial asset inspection. Replace 2D isometric drawings, manual spreadsheets, and disconnected photos with an integrated 3D workflow, optimized for tablets in the field.

The inspector imports an existing 3D model (IFC, RVM, FBX, GLB, DXF, OBJ, STL or .vmsc) or models pipelines, valves, and other components directly within the app. Damage points are marked on the geometry, the condition is described, and photographs are captured with the device camera, with notes and drawing over each photo. Once the inspection is complete, full reports can be generated in PDF, Excel, or image formats, ready for technical review and sharing.

KEY FEATURES

. 3D model import in IFC, RVM (AVEVA), FBX, GLB, DXF, OBJ, STL and .vmsc formats, with hierarchy preserved

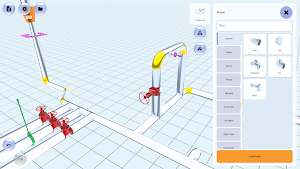

. In-app modeling of pipelines, valves, flanges, and other components

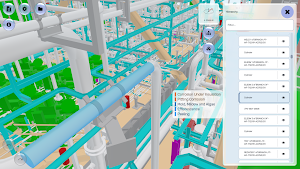

. Damage annotation on specific points of the 3D geometry
. Photograph capture, annotation, and organization per component
. Report generation in PDF, Excel, and image formats directly from the field, with no server dependency
. Inspection transfer between devices as a .zip file

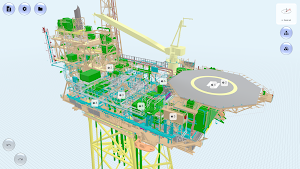

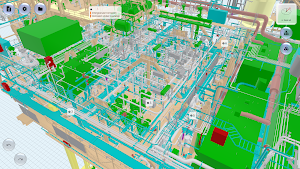

. Isometric 3D visualization that eliminates ambiguities common in 2D drawings
. Consolidated inspection history per project

WHO VECTRO 3D IS FOR

A professional application built for inspection and maintenance teams in industrial environments: refineries, petrochemical plants, terminals, pulp and paper mills, mining, power generation, and any sector where asset integrity is critical.

LICENSE REQUIRED

Vectro 3D is a professional, per-device licensed application. A registration code issued by the contracting organization is required to use the app. Organizations interested in licensing Vectro 3D may contact us at rysax.com.

ABOUT RYSAX

Rysax is a Tecnofink Group company, headquartered in Houston (USA) with operations in Brazil. The Tecnofink Group has decades of experience in engineering, industrial software, and specialized services.
