AIRCompressor
Turbo compressor calc for dry air: power, mass flow & efficiency with sliders.
About AIRCompressor
AIRCompressor calculates the compression of dry standard air for turbo compressors — for engineering estimates, teaching, and quick “what if” checks on the go.
HOW IT WORKS
• Set inlet pressure, inlet temperature and discharge pressure with sliders
• Choose what to solve for with the calculate icon: power, mass flow or isentropic efficiency
• The other two operating quantities stay inputs; results update live as you drag

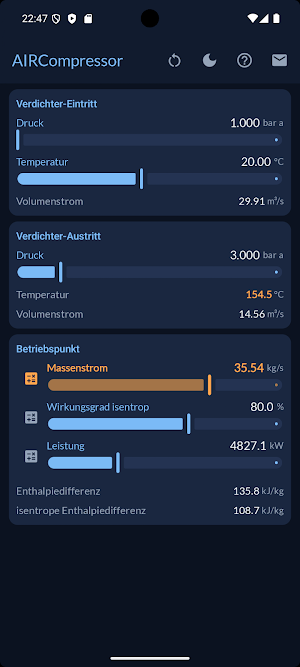

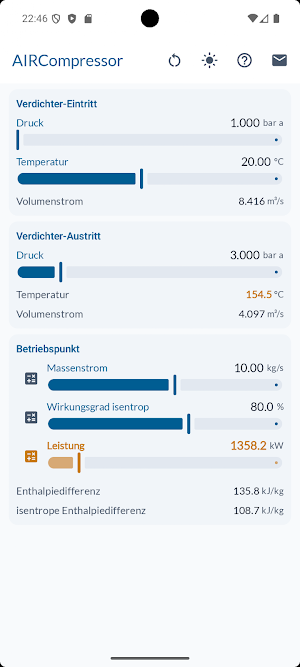

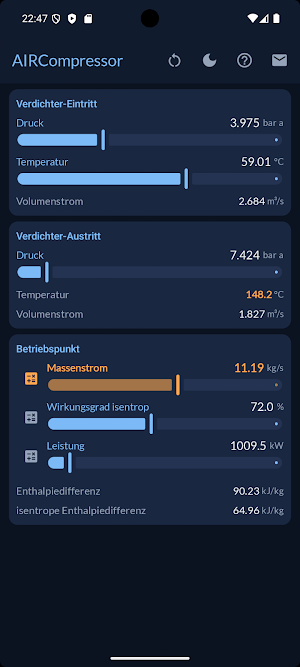

• See discharge temperature, volumetric flows and enthalpy difference at a glance
DESIGNED FOR ENGINEERS
• Free tier: slider-based input only — fast interactive exploration
• Clear highlight of the calculated quantity
• Light and dark themes (system / light / dark)
• Landscape layout with inlet and discharge side by side
• German and English interface
• In-app help and legal notice
UNITS
• Pressure: bar absolute
• Temperature: °C
• Mass flow: kg/s
• Power: kW (shaft power consumed)
• Efficiency: % (isentropic, η = Δh_s / Δh)
• Volume flow: m³/s
• Enthalpy difference: kJ/kg
IMPORTANT
This app is provided in good faith but without warranty of correctness or completeness. Always verify critical calculations with your own methods and professional judgment.
