FieldSense MeterSense

About FieldSense MeterSense

The MeterSense app is a component of Connexo FieldSense, a solution for the administration, configuration and service of Honeywell smart meters.
Features
Communication to Honeywell smart meters
- Support for Honeywell meter families: AC250 NXS, Alpha 4, A3 ALPHA, REXUniversal.
- Support for all ANSI C12 communication protocols: ANSI C12.18, ANSI C12.21, ANSI C12.22.
- Local communication to Honeywell smart meters via meter’s optical port using Bluetooth
- Remote communication to Honeywell smart meters:
- IPv4 for meter equipped with WAN interface (e.g., cellular modem).
- IPv6 for meters connected via SynergyNet® mesh network.

Meter readings: store, view, manage

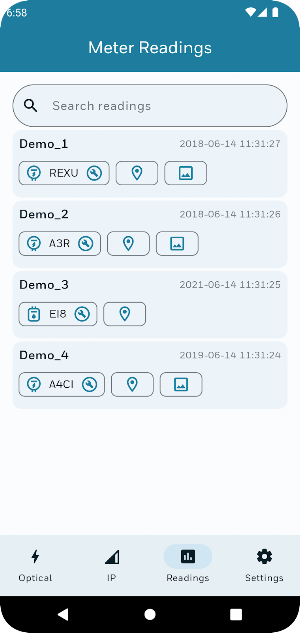

- View and manage list of meter readings generated by the app.

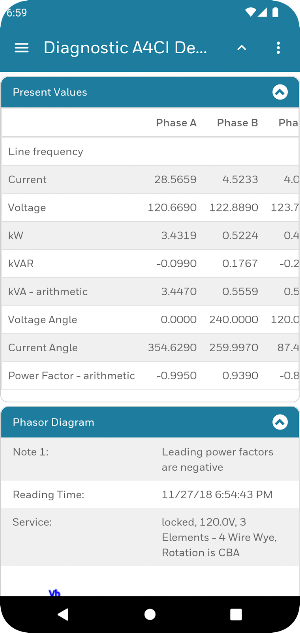

- Open a stored meter readings and display all meter data in a comprehensive set of meter views.
- Capture and associate meter photo to a reading (when the reading is performed over optical port).
- Capture and associate meter location to a reading (when the reading is performed over optical port).

Synchronize to Metercat Server via secure HTTPS interface, upon successful authentication:
- Metercat Server sends to the app the data/settings authorized to the user by the Connexo FieldSense administrator (e.g., authorized functions, authorized meter programs, phone book entries, etc.).
- MeterSense sends to the server the meter readings, meter locations/photos, audits logs and any other data generated by the app during operation in the field.

Extensive library of meter functions
- Support extensive library of functions for Honeywell meters.

Integrated HTML Help
- App >Help offers detailed information on app functionality and useful reference documentation for Honeywell smart-meters.
