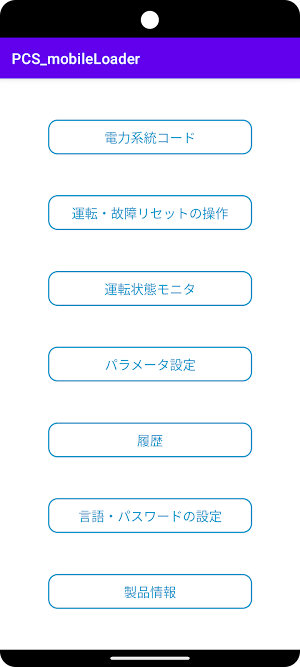

PCS-Loader for PIS series

◆ Power system code setting

Switches to the setting according to the system (voltage/frequency) to be connected.

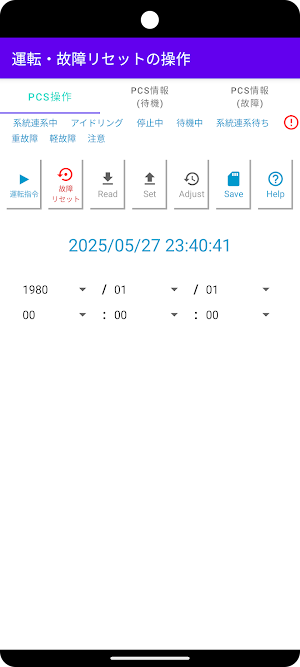

◆ Run/Stop operation

Sends a run/stop command to the PCS.

◆ Fault reset

Resets the fault state (major fault/minor fault) of the PCS.

Before performing a fault reset operation, be sure to check the troubleshooting in the user's manual and take appropriate measures.

◆ Clock information

You can read/write the internal clock information of the PCS.

◆ Operation status monitor

Displays the standby/fault factors and measurement values ​​currently detected by the PCS in real time.

◆ Parameter setting

You can set each function of the PCS.

◆ History

You can receive the history of system abnormality information, fault information, operation information, etc. recorded by the PCS.

◆ Language/password setting

You can switch the password and language display when logging in to the loader.

◆ Product information

Displays the product information of the PCS.
