PV Solar

About PV Solar

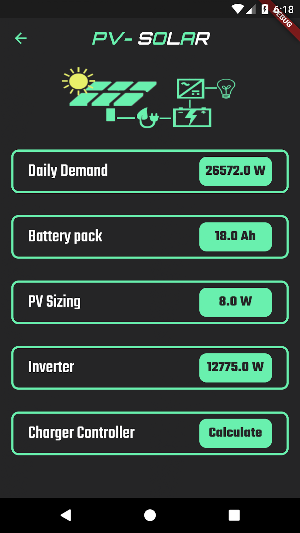

*This is a tool to calculate a solar PV system in 5 steps if you are wiling to do some solar project.

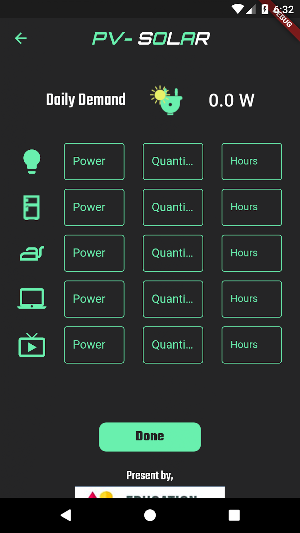

01. Daily Demand Calculation.

Based on the usage that you are willing to cover from solar power, can be calculate in a easy way. You will have to enter the in-put Power, Quantity & working hours of each appliance .This will Calculate total Watt-hours per day for each appliance used.

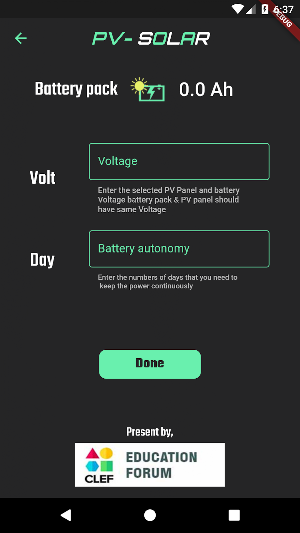

02. Battery Pack Sizing.
You will have to select & enter the Available Voltage of PV panel that you are going to use and the number of days that you need the PV-system to operate when there is no power produced by PV panels.We recommend to use deep cycle batteries. this will result the require capacity of battery in Ampere-hour.

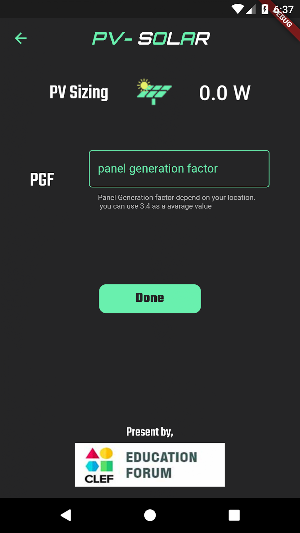

03. PV panel Sizing.
You will have to decide the PGF(Panel Generation Factor) which is different in each site location. If you can not find it exactly use 3.4 as an average value.This will result the total wattage of the PV panel. By using this you can decide the Result of the calculation is the minimum number of PV panels according to the available PV panel sizes.

04.Inverter Sizing.
Inverter will be sizing based on demand.

05. Battery Charger Controller Sizing.
Enter the short circuit current (Isc) of the one PV panel and Numbers of Panel.

* User friendly interface with easy calculation.5 steps approach

If you have any comment or any question please contact us via given contact information.
