Control

About Control

elm Control is a program with intelligent features for managing your heating system via the Internet - from the climate control to display the yields of a solar thermal system. Simple to use, safe and very convenient.

The most important functions:

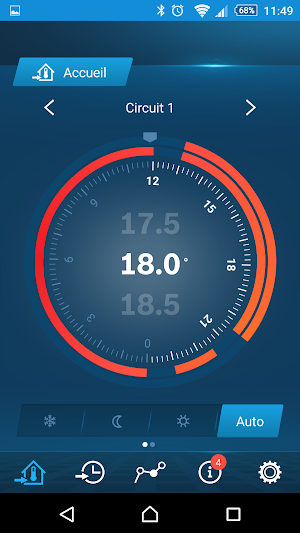

- Changing the room temperature
- Changing the operating mode (Auto, Man, ...)

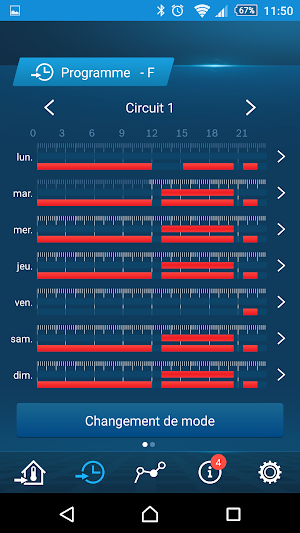

- Adjusting the heating temperature failover programs
- Changing the heating temperature levels
- Settings of hot water, gas and oil appliances with EMS2 regulations CW 400, CR 400 or 800 CW and heat pumps

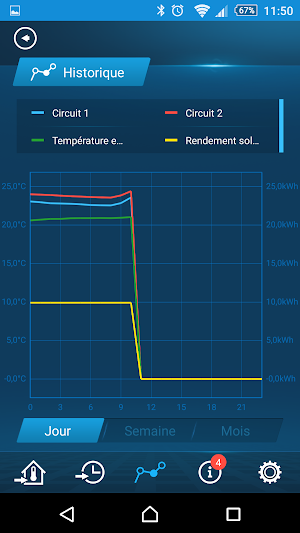

- Graphical display of system values ​​such as outside temperature, room temperature, the solar yield by day / week / month
- Display and fault message



An overview of compatible heat sources and additional information can be found on "Visit Website" below


To use elm Control, you will need:
- Heating system with a compatible regulation elm Control (see link "Visit Website" below)
- Internet Gateway MB LAN (i) for communication between the Internet and the heating control
- LAN network available (router with a free RJ45 connection)
- Access via your router to access your heating system when you are away
- Smartphone with the operating system from version 4.0.3

All subsequent regulations from the production date September 2008 are compatible with elm Control (2 son bus connection):

- Regulations depending on the outside temperature: 400 CW, CW 800, FW 100, FW 120, FW 200, FW 500
- Regulations depending on the ambient temperature: CR 400, EN 100, EN 110, EN 120
- Room Regulations: FB 100, CR 100 (configured as a remote control)

Additional information:
Additional charges may be incurred for the Internet connection, an Internet package is recommended.

Functional extensions of the application requires that the software on your gateway is updated. For the update, connect the gateway to the Internet for at least 24 hours.
