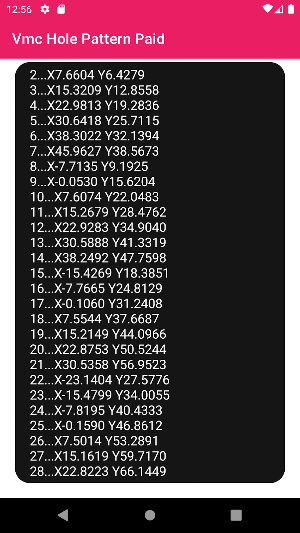

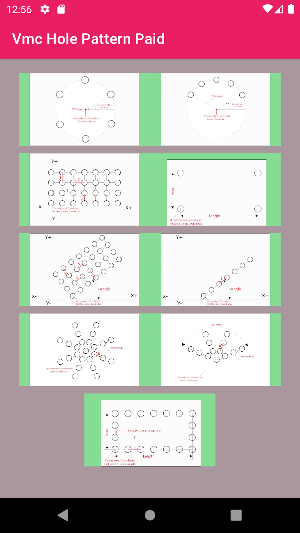

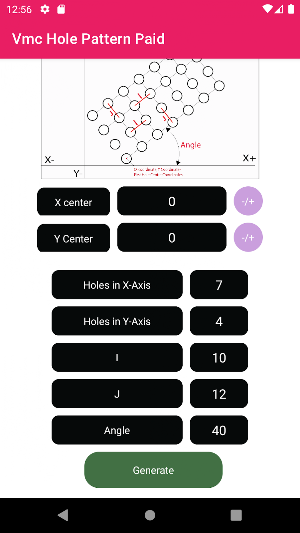

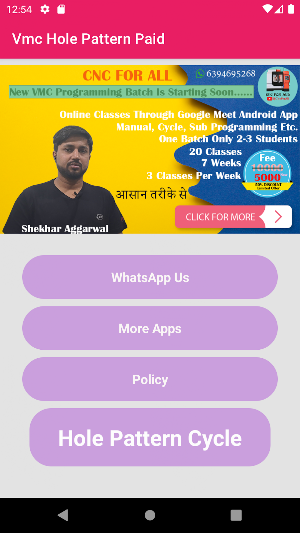

Vmc Hole Pattern Cycle Paid app Is a good app for creating hole patterns cycles
Hole patterns
In the area of coated abrasives a hole pattern describes the arrangement of the suction holes embedded in the corresponding disc or strip.
The type of hole pattern needed for a particular application always varies with the machine used. A list with an allocation of the most common hole patterns to the appropriate machine types
In the point-to-point machining operations, consisting of drilling, reaming, tapping, boring, etc., we are often required to machine either a single hole or a series of holes with the same tool, usually followed by other tools. In practice, several holes are much more common than a single hole. Machining several holes with the same tool means machining a pattern of holes or a hole pattern. An English dictionary defines the word pattern as a characteristic or consistent arrangement or design . Translated to the hole machining terms, any two or more holes machined with the same tool establish a pattern. The desired hole pattern is laid out in the part drawing either randomly . Dimensioning of a hole pattern follows standard dimensioning practices.
This chapter describes some typical hole patterns laid out on a flat part and the various methods of their programming. To make matters simple, all programming examples related to the hole patterns will assume a center drilling operation, using a #2 center drill, with chamfer diameter .150, to the rence point Z0) is the top face of part and the tool is assumed to be already in the spindle. For the purpose of clarity, no hole diameters or material size and thickness are specified in the examples.
Hole series previews specify individual components of the hole series. Smart Fastener components also highlight. For example, when focus is on the Last Part tab, the last part highlights in the graphics area.
You cannot use hole series on assembly components which are multiple instances of the same part, unless each instance is a separate configuration
If you underive the hole series hole in an individual part it becomes a Hole Wizard hole with no reference to the assembly.
In SOLIDWORKS 2020, when you use a Pattern Driven Component Pattern with a Hole Wizard feature as its driving feature, you can align the pattern distances to the hole axis for each hole. In the Property Manager of the Pattern Driven Component Pattern, you have two alignment methods under
What is a vertical machine center?
Vertical machining occurs on a vertical machining center (VMC), which employs a spindle with a vertical orientation. With a vertically oriented spindle, tools stick straight down from the tool holder, and often cut across the top of a workpiece.
What is VMC in machining?
Image result for vertical machining centre
VMC machining refers to machining operations that utilize vertical machining centers (VMCs), which, as the name suggests, have vertically oriented machine tools. These machines are primarily utilized to turn raw blocks of metal, such as aluminum or steel, into machined components.
What are process can be done in VMC machine?
They can be used to perform a variety of machining operations, including, but not limited to, the following: cutting, drilling, tapping, countersinking, chamfering, carving, and engraving. This versatility, combined with their relatively low cost, has made them a highly common machine shop tool.
Vmc Programming & Mini CAM App tells a machine how to make a product by generating toolpaths.
Machinery that can turn raw material into a finished product.
Post Processing converts toolpaths into a language machines can understand.
These three components are glued together with tons of human labor and skill. As an industry, we’ve spent years building and refining the best manufacturing machinery around. Today, there’s no design too tough for any capable machinist shop to handle.
Computer Aided Manfacturing software prepares a model for machining by working through several actions, including:
