Electric Motors Quiz

About Electric Motors Quiz

Challenge yourself with interactive quizzes covering Induction Motors, Synchronous Motors, Power Electronics, and more. Learn, practice, and track your progress on the go.

Features:

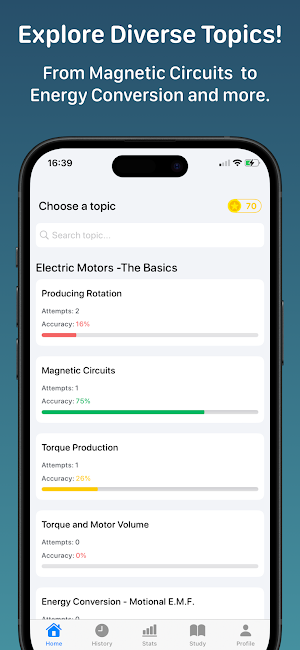

Comprehensive Coverage: Dive into topics like Induction Motors, Synchronous Motors, Stepping Motors, Power Electronics, and more.

Challenging Questions: Explore hundreds of carefully crafted questions with multiple difficulty levels.

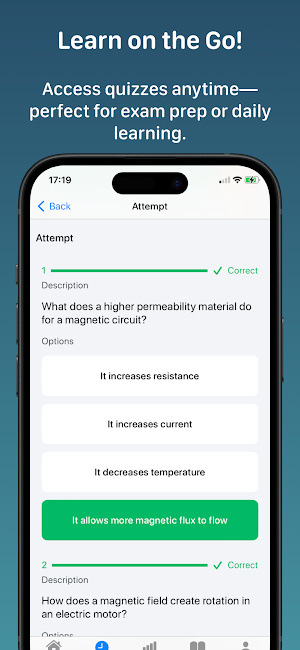

Interactive Learning: Detailed explanations for answers to help you learn as you play.

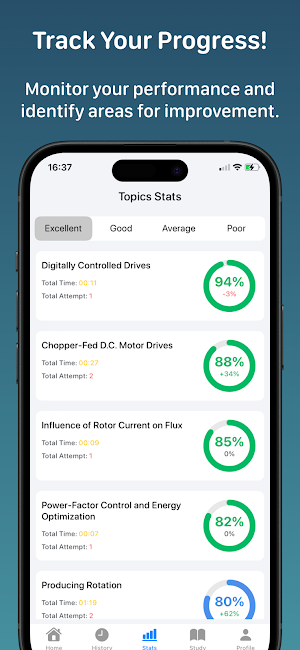

Practice and Progress: Track your performance over time and focus on improving weak areas.

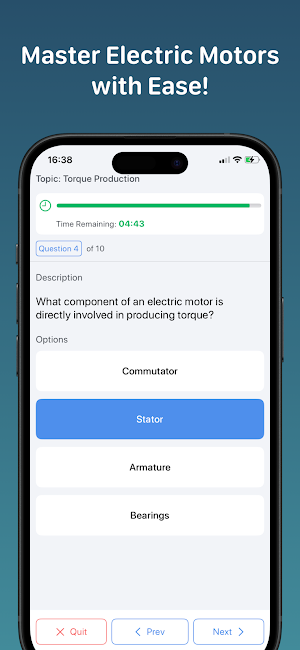

Timed Quizzes: Test your speed and accuracy under pressure.

Whether you’re preparing for exams, refreshing your knowledge, or looking to challenge yourself, Electric Motors Quiz is the perfect tool to power up your expertise in electric motors and drives!

Topics covered:

Power Electronic Converters for Motor Drives:
-Voltage Control - D.C. Output from D.C. Supply
-D.C. from A.C. - Controlled Rectification
-A.C. from D.C. - Inversion
-A.C. from A.C.
-Inverter Switching Devices
-Converter Waveforms, Acoustic Noise, and Cooling

Conventional DC Motors:
-Torque Production
-Motional E.M.F.
-D.C. Motor - Steady-State Characteristics
-Transient Behavior - Current Surges
-Four Quadrant Operation and Regenerative Braking
-Shunt and Series Motors
-Self-Excited D.C. Machine
-Toy Motors

DC Motor Drives:
-Thyristor D.C. Drives - General
-Control Arrangements for D.C. Drives
-Chopper-Fed D.C. Motor Drives
-D.C. Servo Drives
-Digitally Controlled Drives

Induction Motors - Rotating Field Slip and Torque:
-The Rotating Magnetic Field
-Torque Production
-Influence of Rotor Current on Flux
-Stator Current-Speed Characteristics

Induction Motors - Operation from 50/60Hz Supply:
-Methods of Starting Cage Motors
-Run-Up and Stable Operating Regions
-Torque-Speed Curves - Influence of Rotor Parameters
-Influence of Supply Voltage on Torque-Speed Curve
-Generating
-Braking
-Speed Control
-Power-Factor Control and Energy Optimization
-Single-Phase Induction Motors
-Power Range

Variable Frequency Operation of Induction Motors:
-Inverter-Fed Induction Motor Drives
-Torque-Speed Characteristics
-Introduction to Field-Oriented Control
-Steady-State Torque Under Current-Fed Conditions
-Torque vs Slip Frequency - Constant Rotor Flux Linkage
-Dynamic Torque Control
-Implementation of Field-Oriented Control
-Direct Torque Control

Inverter-fed Induction Motor Drives:
-Pulse-Width Modulated (PWM) Voltage Source Inverter (VS)
-Performance of Inverter-Fed Induction Motor Drives
-Effect of Inverter Waveform and Variable Speed on the Induction Motor
-Effect of the Inverter-Fed Induction Motor on the Utility Supply
-Inverter and Motor Protection
-Alternative Converter Topologies


Synchronous and Brushless Permanent Magnet Machines and Drives:
-Synchronous Motors
-Equivalent Circuits of Synchronous Motors
-Operation From Constant-Voltage, Constant-Frequency (Utility) Supply
-Variable-Frequency Operation
-Synchronous Motor Drives
-Performance of Brushless Motors
-Reluctance and Hysteresis Motors


Stepping and Switched Reluctance Motors:
-Stepping Motors
-Principle of Motor Operation
-Motor Characteristics
-Steady-State Characteristics - Ideal (Constant-Current) Drive
-Drive Circuits and Pull-Out Torque-Speed Curves
-Transient Performance
-Switched-Reluctance Motor Drives

Motor Drive Selection:
-Power Ratings and Capabilities
-Drive Characteristics
-Load Requirements - Torque-Speed Characteristics
-General Application Considerations
