Cnc Fanuc Milling

About Cnc Fanuc Milling

*Cnc Fanuc Milling application is for educational purposes

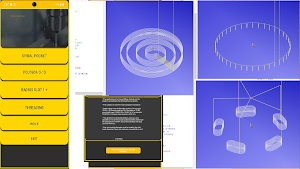

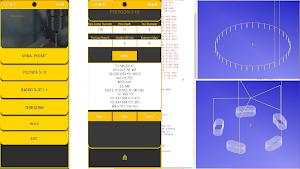

*The application is for Fanuc Milling, it prints out the program according to the dimensions you specify.



*The outputs are used for macro program instruction.\n\n



*Depth values must be divisible numbers, for example 10/0.5 = 20 Passes must be 0.5
If the depth is 10.80, you should round 10.80/0.35 = 30.857 to 1, for example 10.80/30 = 0.36 your pass amount is 0.36 mm



* Pay attention to the tool diameters, choose a tool diameter of 1/4 of the circular pocket diameter, determine the spiral pitch of 40-50% of your tool diameter, the step can start from 0.5


*Your slot outside diameter must be smaller than slot inside diameter
Check slot and team compatibility
In slot tool selection, your tool diameter should not be more or less than the slot width.


* The macro program starts from the lower level.
It may seem too complicated for advanced new users.



*Finally, try the outputs you have received by creating a positive safety distance from the workpiece tool zero.
use your own speed and feed values for precision.
enjoy your work.
