FDAC Filter Design Inductor Transformer Capacitor

About FDAC Filter Design Inductor Transformer Capacitor

This is very user friendly app for SMPS filter design and calculation of inductor, transformer and capacitor.
1. FDAC provides filter calculation at just 1 click.
2. The default values and calculations are given for inductor, capacitor and transformer in every circuit.

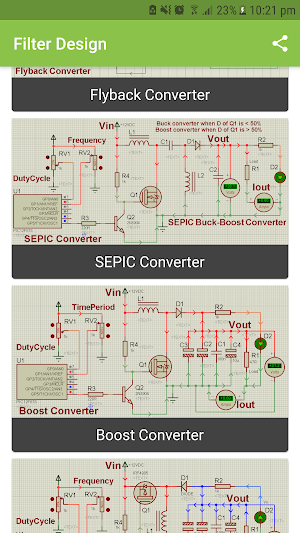

3. The filter values are calculated for following circuits:
i) Asynchronous Buck Converter
ii) Synchronous Buck Converter
iii) Boost Converter
iv) Inverting Buck-Boost Converter
v) Cuk Converter

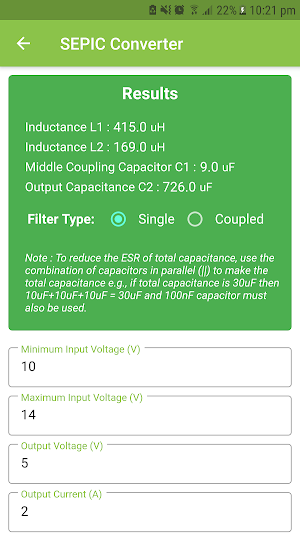

vi) Sepic Converter
vii) Flyback Converter
More filter circuits for design and calculation will also be added and this app will also proivide design parameters for inductors and transformers.
