Skema Kelistrikan Mobil Eropa

About Skema Kelistrikan Mobil Eropa

Aplikasi ini memudahkan anda dalam mengatasi masalah pada rangkaian kelistrikan mobil anda, diantaranya :
1. STARTING & CHARGING SYSTEM
- BATTERY,IGNITION SWITCH,STARTER MOTOR,GENERATOR & PNP SWITCH CIRCUIT
2. ECM (ENGINE CONTROL MODULE)
- BATTERY POWER SUPPLY,GROUND,EI SYSTEM & CKP SENSOR CIRCUIT
- FUEL PUMP,FUEL CONNECTOR & CMP SENSOR CIRCUIT,INJECTOR & HEATED O2 SENSOR CIRCUIT
- MTIA,IAC,SENSOR (MAP,ECT,TP,IAT,KNOCK,ACP,HO2S,O2 & ROUGH ROAD) EGR VALVE,LEGR CIRCUIT & POWER STEERING PRESSURE SWITCH CIRCUIT
- EVAP CANISTER PURGE SOLENOID,CMP SENSOR,VGIS,CLUSTER & VSS CIRCUIT
- CLUSTER,FUEL PUMP & TCM CIRCUIT
- DLC,MIL LAMP & IMMOBILIZER CONTROL CIRCUIT & RON SWITCH CIRCUIT
3. TCM (TRANSMISSION CONTROL MODULE)
- POWER SUPPLY,GROUND,PNP SWITCH,BRAKE SWITCH & SOLENOID VALVE CIRCUIT
- SENSOR (INPUT SPEED,OUTPUT SPEED,TRANSMISSION FLUID TEMP),CLUSTER,DLC,ECM & HOLD MODE SWITCH CIRCUIT
- PNP SWITCH & CLUSTER CIRCUIT
4. AIR CONDITIONER
- AIR CONDITIONER CONTROL SWITCH,BLOWER MOTOR RESISTER & BLOWER MOTOR CIRCUIT
- AIR CONDITIONER CONTROL,INTAKE MOTOR SWITCH & AIR CONDITIONER COMPRESSOR CIRCUIT
5. FATC (FULL AUTOMATIC TEMPERATURE CONTROL)
- BLOWER MOTOR,INTAKE MOTOR,MODE MOTOR,MAX HIGH RELAY & POWER TR CIRCUIT

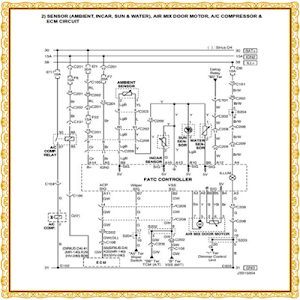

- SENSOR (AMBIENT,INCAR,SUN & WATER),AIR MIX DOOR MOTOR,A/C COMPRESSOR & ECM CIRCUIT
6. RADIATOR COOLING FAN CIRCUIT

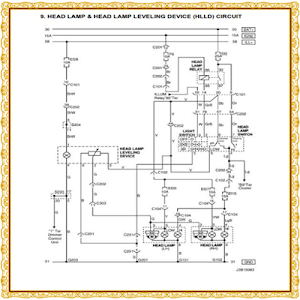

7. HEAD LAMP & HEAD LAMP LEVELING DEVICE (HLLD) CIRCUIT
8. ILLUMINATION CIRCUIT
- ILLUMINATION CIRCUIT -- W/ DIMMER CONTROL
- LAMP (LICENSE PLATE & W/ FRONT / REAR PARKING) CIRCUIT
9. FRONT & REAR FOG LAMP CIRCUIT
10. HAZARD & TURN SIGNAL LAMP CIRCUIT
11. STOP LAMP,CENTER HIGH MOUNT STOP LAMP (CHMSL) & REVERSE LAMP CIRCUIT
12. TRUNK OPEN SWITCH,TRUNK LATCH SWITCH,TRUNK ROOM LAMP & HORN CIRCUIT
- DUAL HORN
- SIGNLE HORN
13. LAMPS (MAP & ROOM) CIRCUIT
- W/O SUN ROOF & W/O DECAY
- W/ SUN ROOF & W/O DECAY
14. CLOCK,CIGAR LIGHTER,ASHTRAY ILLUM.LAMP & EXTRA POWER JACK CIRCUIT
- M/T
- A/T
15. CHIME BELL,SEAT BELT & KEY REMIND SWITCH CIRCUIT
16. WIPER CIRCUIT
- W/O RAIN SENSOR & AIR CONDITIONER,FATC
- W/ RAIN SENSOR & AIR CONDITIONER,FATC
17. REAR WINDOW DEFROSTER & OSRV MIRROR HEATING SYSTEM CIRCUIT
18. ELECTRIC OSRV (OUTSIDE REAR VIEW) MIRROR CIRCUIT
19. FOLDING MIRROR UNIT CIRCUIT
20. POWER WINDOW CIRCUIT
- ONLY FRONT POWER WINDOW CIRCUIT
- FRONT & REAR POWER WINDOW CIRCUIT
21. CENTRAL DOOR LOCKING SYSTEM CIRCUIT
22. CLUSTER
- TEMPERATURE GAUGE,TACHOMETER,FUEL GAUGE,ODDOMETER,SPEEDOMETER & FUEL WARNING LAMP CIRCUIT
- WARNING (MIL,ABS,TCS,PARKING BRAKE & CHARGING) LAMP CIRCUIT
- WARNING (SSPS,AIR BAG,OIL PRESSURE & SEAT BELT) LAMP & HOLD MODE CIRCUIT
- INDICATOR LAMP (FRONT & REAR FOG) & DOOR OPENING WARNING LAMP CIRCUIT
- INDICATOR LAMP (TURN SIGNAL,HIGH BEAM & HAZARD) & ILLUMINATION LAMP CIRCUIT
23. AUDIO CIRCUIT
- W/O RDS
- W/ RDS
24. ABS (ANTI LOCK BRAKE SYSTEM)
- POWER SUPPLY,WHEEL SPEED SENSOR & BRAKE SWITCH CIRCUIT
- OIL FEEDING CONNECTOR,WARNING (ABS,TCS & BRAKE) LAMP & DLC CIRCUIT
25. AIR BAG (SDM: SENSING & DIAGNOSTIC MODULE) CIRCUIT
26. SUN ROOF CIRCUIT
27. SSPS (SPEED SENSITIVE POWER STEERING) CIRCUIT
28. IMMOBILIZER SYSTEM CIRCUIT
29. ANTI THEFT CONTROL SYSTEM CIRCUIT
download for free, may be useful
